Brand Name : Emerson
Model Number : R48-3200E
Certification : CE UL
MOQ : 1
Price : 1 USD
Payment Terms : L/C,T/T,Western Union
Supply Ability : 1000 pcs per month
Delivery Time : 5-10 days
Packaging Details : cartons
Model NO. : R48-3200E
Output Voltage : 48v
Power - Rated : 3200W
Output Connector : NO
Input Connector : NO
Output Power : 3200W
Weight : 3kg
The R48-3200e rectifier converts standard AC supply voltages into stable nominal-48V DC voltage adjustable to the needs of the application. The R48-3200e is a constant power rectifier designed with the latest patented switchmode technology using DSP (Digital Signaling Processor) functionality for efficient operation. For a higher load capacity, rectifiers can be connected in parallel and intelligent control can be added with the help of a separate controller.
1. Hot pluggable facilitates future extensions
2. Wide input voltage range operates in the most demanding environments where input voltage changes
3. Wide temperature operating range (-40 C / -40 F to +75 / 167 F)-meets the harshest climatic environment requirements
4. High efficiency, up to 92%-reduces power consumption for lower operating costs
5. DSP (Digital Signaling Processor)- means fewer components, optimized operation and active load sharing for increased reliability
Model | R48-3200E |
AC input | 200 - 250V ~17A 50/60HZ |
DC Output | -48V 3200W |
Efficiency | 94% |
Dimensions (H*W*D)mm | 125*85*290 |
Weight | <3kg |
Altitude | <3000mm |
Equalizing Charging Temp.Coefficient | built-in fan, forced convection |
![]() |

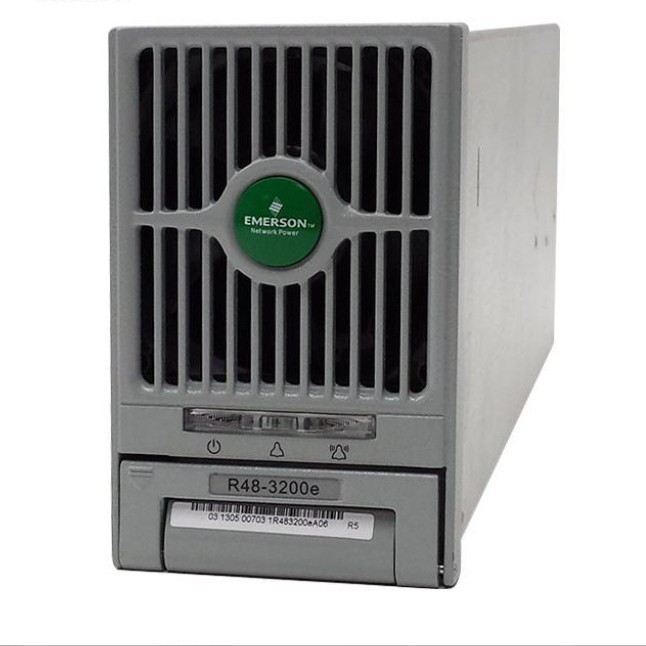

R48-3200E Network Power Rectifier Module 48V DC 3200W Images |
