Eliability
Wide voltage input range 80-300vac, strong adaptability of power grid and oil turbine.
Ultra wide working temperature range - 40 ~ 65 ºC, suitable for various geographical areas.
AC side, DC side, signal side all-round lightning protection design, improve the system lightning protection capacity.
It has the function of walk in to avoid the impact on the former transformer and oil engine during startup.
High efficiency and energy saving
The efficiency of the high efficiency module is 96%, saving the user's electricity expense.
The utility model has the patent technology of dormancy and high general efficiency module mixed insertion energy saving, which improves the operation efficiency.
It has the intelligent speed regulation function of fan to reduce the power consumption of the system.
The power density of the rectifier module is high, and more wiring and operation space are reserved.
Intellectualization
With RS232 / RS485, network port, dry contact and other communication interfaces, the network is flexible.
The rectifier module has independent ID identification function, which is convenient for user's asset management
Perfect battery management function, effectively extend the service life of battery.
Rapid deployment
Standard 19 inch flush mount design.
Low noise design to meet all kinds of scene construction.
Flexible installation, suitable for indoor machine room / outdoor cabinet / stairwell / basement. Embedded / wall mounted.
Application scenario
Outdoor communication base station
3G, 4G, 5g indoor coverage
Integrated access
RRU independent power supply
MicroStation / Layuan station
Specification

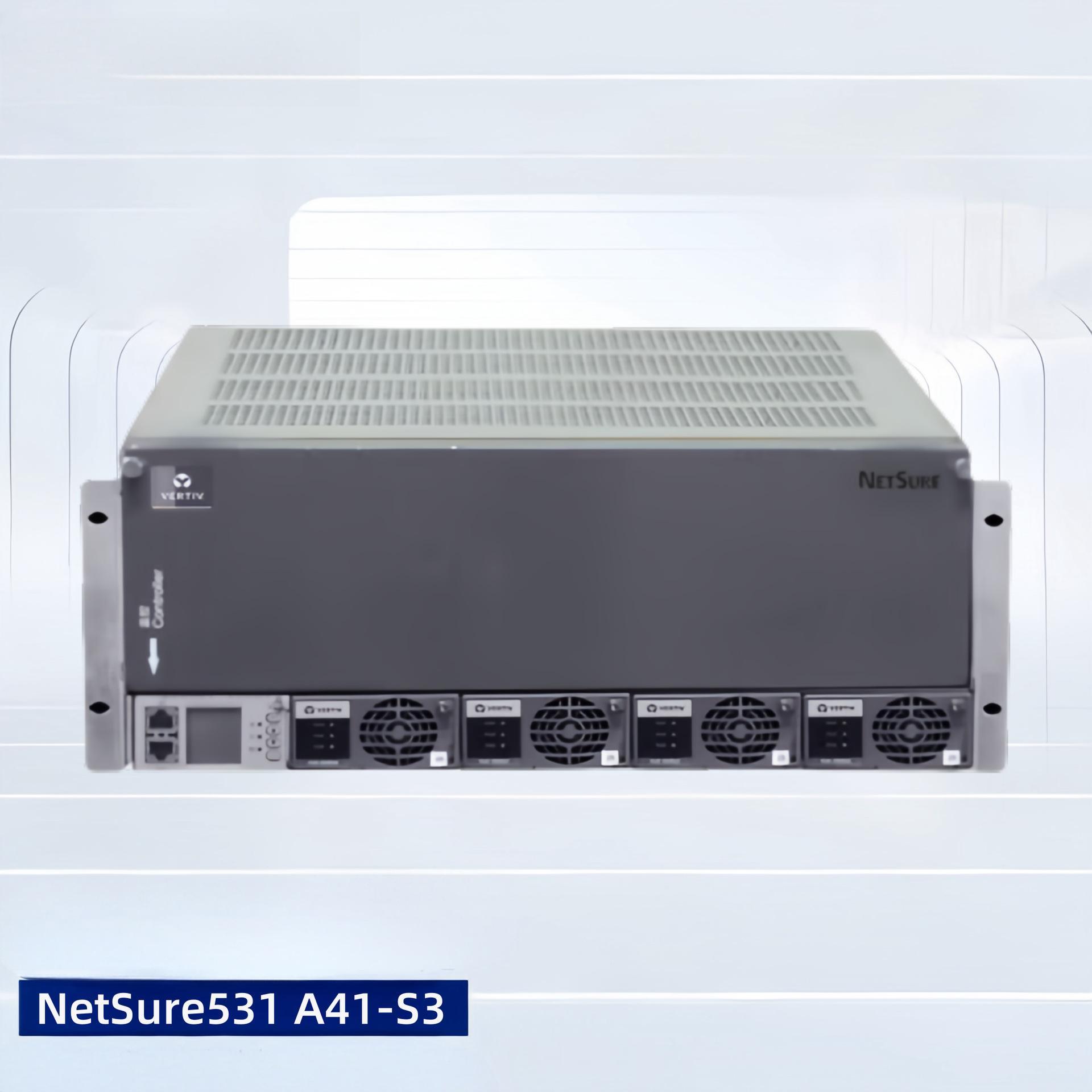

| Configuration type | NetSure 531 A41-S3 |
| system capacity | 120A |
| Monitoring module | M830B(RS232 Interface,network port, USB port) |
| Rectifier module | 30A(R48-2000A3,R48-2000e3 Optional ) |
| AC power distribution | input:1×63A/2P(Circuit breaker) |
| AC lightning protection | Class C (optional) |
| DC distribution | Battery shunting:2×63A/1P(Circuit breaker)
Load power down:2×63A/1P,2×32A/1P(Circuit breaker)
Battery power down:2×32A/1P,2×10A/1P(Circuit breaker) |
| DC lightning protection | ≥10kA(Optional) |
| Mechanical parameters | 483mm(wide)×310mm(deep)×178mm(high)(19 inch 4U high),≤25kg(Module free) |
| Installation mode | Embedded system |
